所属分类: 嵌入式单板计算机 更新日期:2005-8-23 18:39:48 阅读次数:113331


6U CPCI总线商用军用全系列PowerPC处理器


——CP1A

    Features

        ·High performance 6U CompactPCI processor
        ·Fully rugged air/conduction-cooled
        ·Extensive Radstone software support
        ·Key features
           PowerPC 7448
           Discovery 3 Integrated System Controller
           DDR SDRAM on 133 MHz memory bus
           2 x Gigabit Ethernet ports (PICMG 2.16 compliant)
           6 x serial ports
           5 x USB2.0 ports
           AFIX daughter cards

点击打开新窗口

Overview

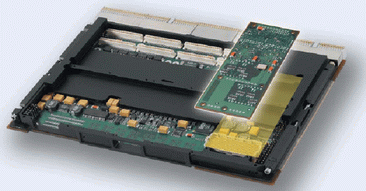

    The CP1A 6U CompactPCI single board computer (SBC) is the founder member of Radstones brand new PowerPact6 family, building on the success of Radstones established PowerPact3 family of 3U CompactPCI products.

    The CP1A is based on the proven designs of Radstones latest VME SBCs but takes full advantage of the enhanced features of CompactPCI, such as support for hot swap and much higher I/O pin count. An extensive range of I/O coupled with two PMC sites and Radstones new AFIX (Additional Flexible Interface Xtension) pluggable module make the CP1A the most versatile single slot solution currently in the defense and aerospace market space.

    The latest PowerPC 7448 processor and latest Discovery 3 Integrated System Controller, combined with Radstones industry-leading software support and experience in designing and manufacturing rugged electronics for over four decades, give the CP1A the edge in embedded computing performance.

下载相关文档CP1A.pdf

----------------------------------------------------------------------------------------------------------------------------
